Index of /1996_Z28_Factory_Manual_Snapshots/ignition_schematics

Icon  Name                    Last modified      Size  Description
[DIR] Parent Directory                             -

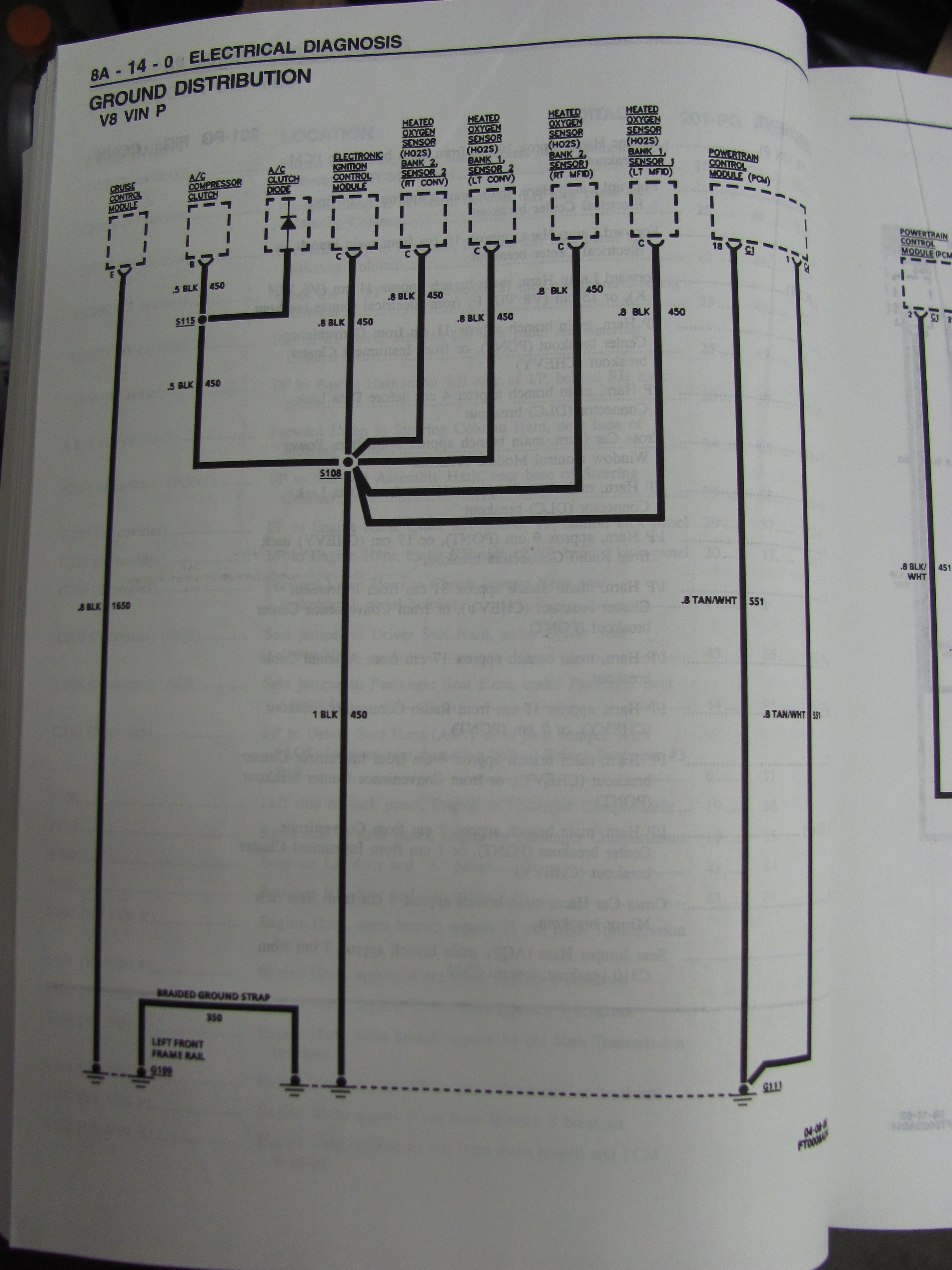

[IMG] Gnd_Distro_1.JPG        19-May-2011 23:35  2.1M

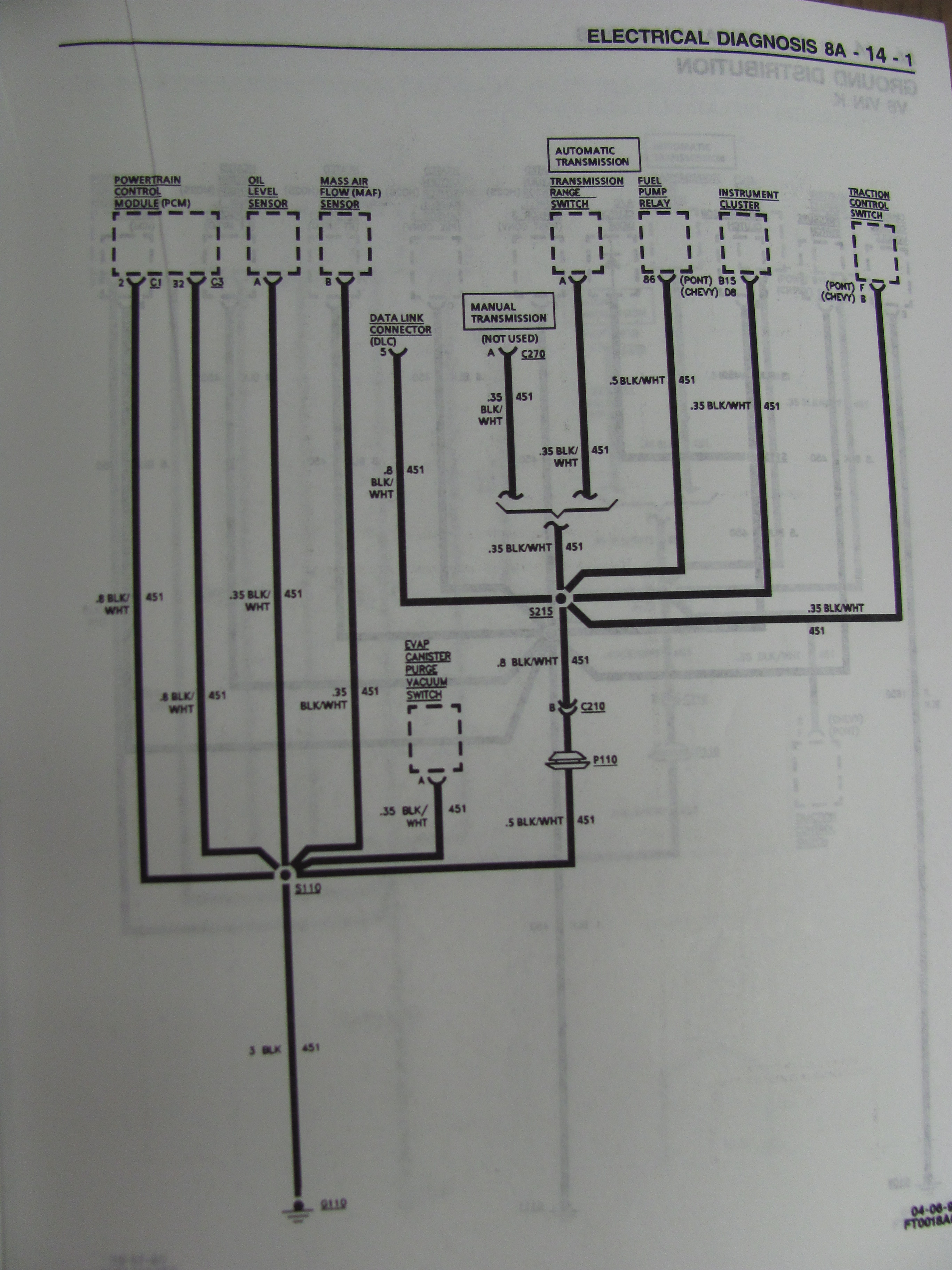

[IMG] Gnd_Distro_2.JPG        19-May-2011 23:34  2.0M

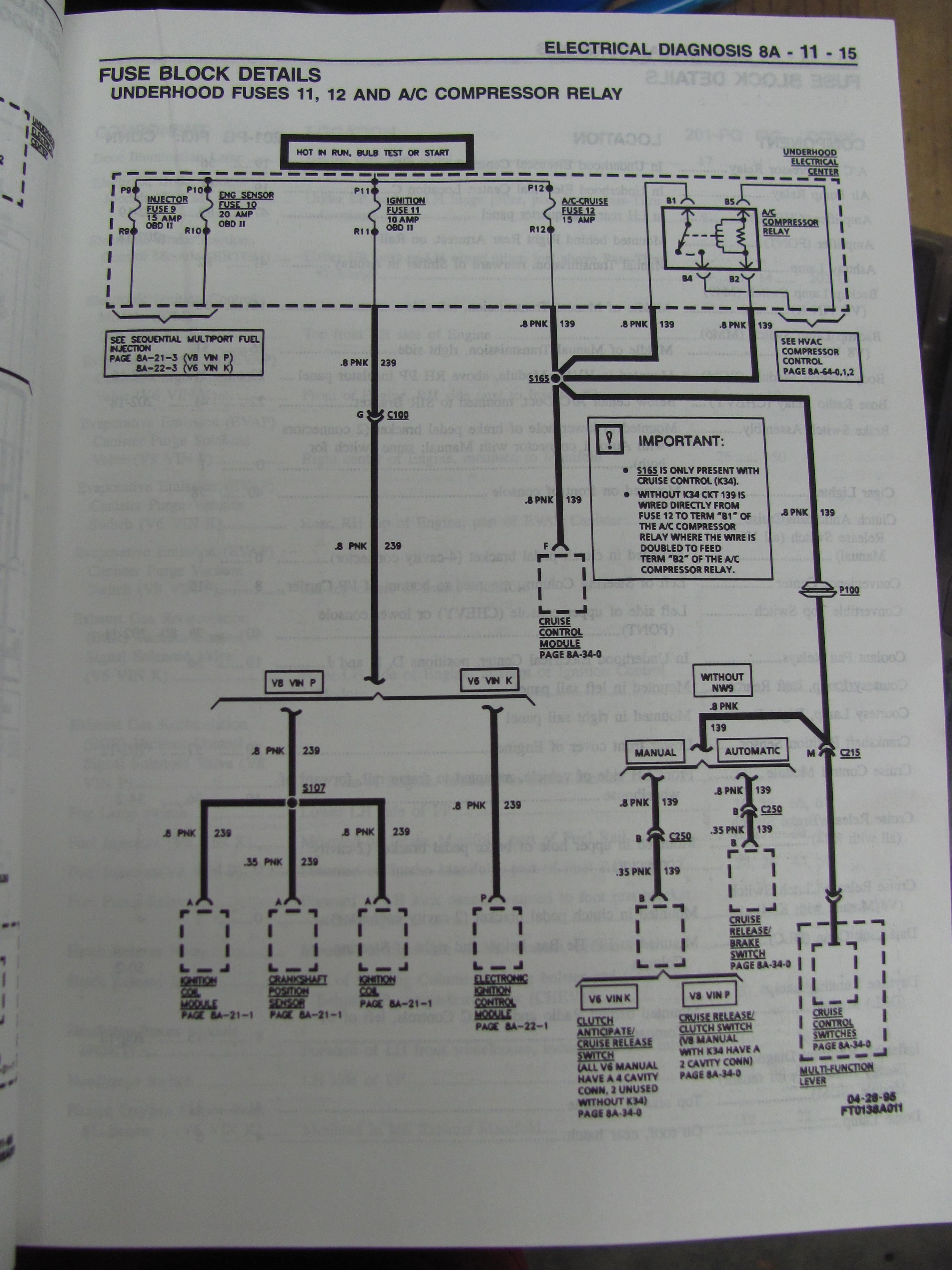

[IMG] IMG_0073.JPG            19-May-2011 23:11  2.3M

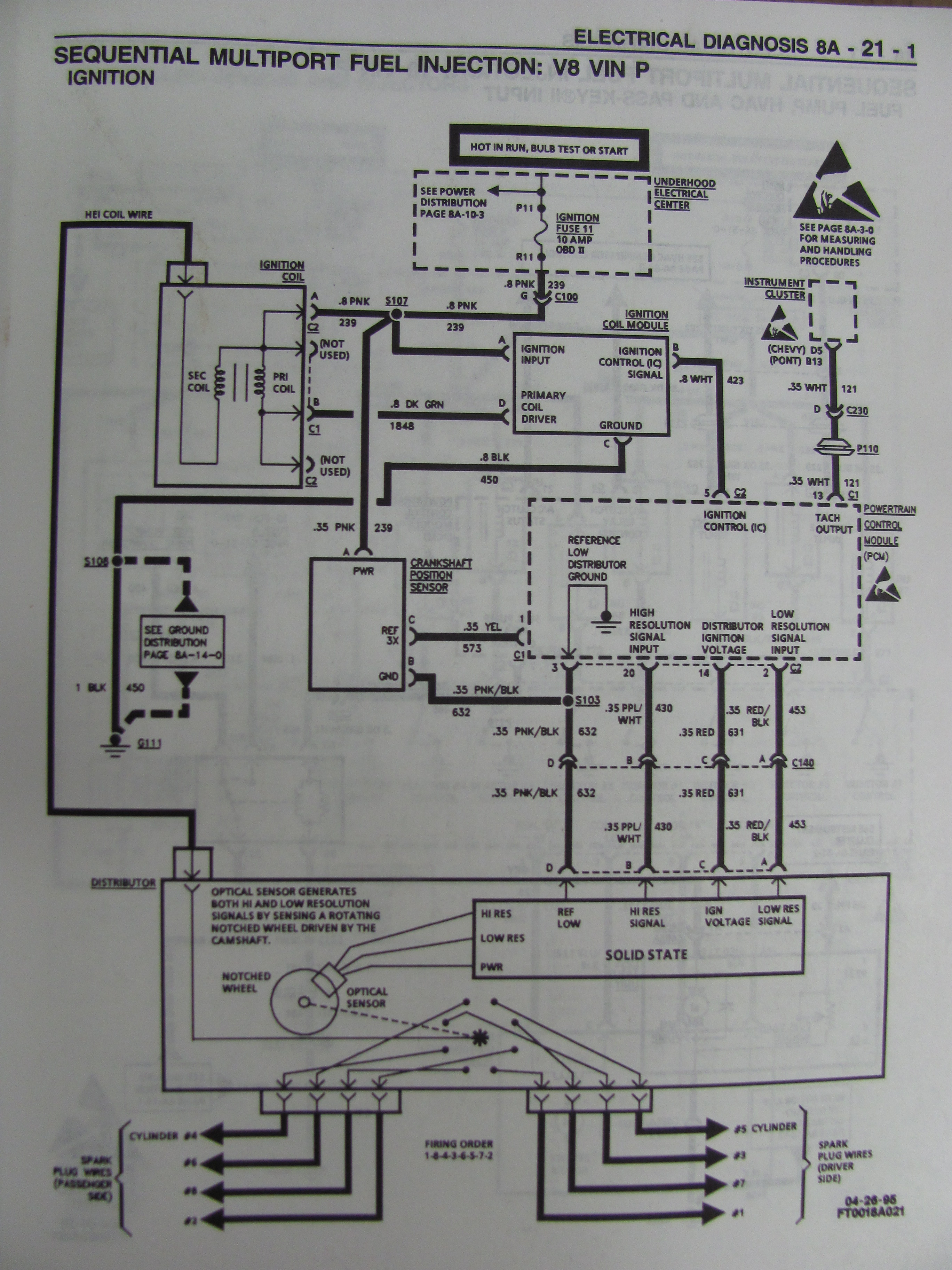

[IMG] IMG_0074.JPG            19-May-2011 23:12  2.3M
